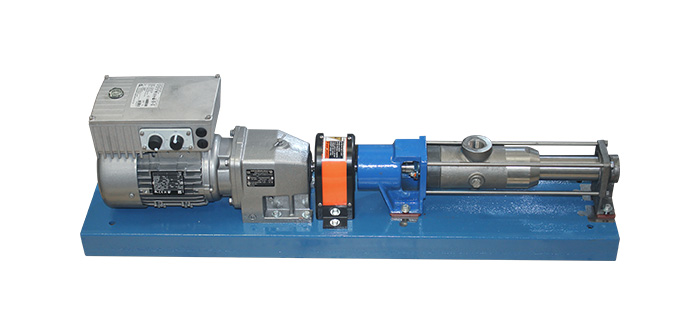

ANPL & ANBPL Progressive Cavity Metering Pumps
The Liberty Process ANPL and ANBPL Series is a rugged series of medium sized low flow progressive cavity metering and dosing pumps available immediately from our inventory at Liberty Process Equipment. This pump is rated up to 9.5 GPM and at discharge pressures up to 350 psi in our 4 stage design. All Pumps are offered in stainless steel.
All Pumps are offered with our standard 1" NPTF connections. Stators are available in Buna Nitrile, Viton®, EPDM and also in PTFE Teflon for the highest standards in corrosion resistance.
The Close-Coupled ANBPL is a great alternative where space is a concern, offered in designs to accommodate 56C and 145TC Frame Motors. Liberty Process can offer a drive and control option to meet your needs and budget.
From a simple, fixed speed motor to a DC or variable frequency drive controlled pump unit we can offer it and have it shipped to you.
ANPL & ANBPL - Features
- Rugged Design
- 1" NPTF Connections
- Non-Pulsating Flow
- Stainless Steel
- PTFE Stators Available
- Corrosion Resistant
ANPL & ANBPL - Technical Data
| Flow Rate | 0 - 9.5 GPM |
|---|---|
| Pressure | 0 - 350 PSI |
| Seal Options | Packing or Mechanical Seal |
| Base Options | Stainless Steel |
| Rotors | Stainless Steel Chrome Plated |
| Stators | Buna / Viton® / PTFE / EPDM |
ANPL / ANBPL Series - Pump Model Overview
ANPL 3.2 & 3.4 Metering Pumps
The 3.2 & 3.4 size ANPL Progressive Cavity Metering Pump is rated for .20 gallons per minute per 100 RPM. It is available in 2 & 4 stage designs for immediate shipment.
Technical Data
| Range | 0 - 2.5 GPM |
|---|---|
| Pressure | 0 - 350 PSI |
Industry Uses
- Polymer Feed System Applications
- Sewage Treatment Applications
- Chemical Injection System Applications
ANPL 6.2 & 6.4 Metering Pumps
The 6.2 & 6.4 size ANPL Progressive Cavity Metering Pump is rated for .40 gallons per minute per 100 RPM. It is available in 2 & 4 stage designs for immediate shipment.
Technical Data
| Range | 0 - 5.0 GPM |
|---|---|
| Pressure | 0 - 350 PSI |
Industry Uses
- Polymer Feed System Applications
- Industrial Wastewater Treatment Applications
- Chemical Injection System Applications
ANPL 12.2 & 12.4 Metering Pumps
The 12.2& 12.4 size ANPL Progressive Cavity Metering Pump is rated for .80 gallons per minute per 100 RPM. It is available in 2 & 4 stage designs for immediate shipment.
Technical Data
| Range | 0 - 9.5 GPM |
|---|---|
| Pressure | 0 - 350 PSI |
Industry Uses
- Polymer Feed System Applications
- Latex Metering Applications
- Food Processing Industry Applications
ANBPL 3.2 Metering Pumps
The 3.2 size ANBPL Progressive Cavity Metering Pump is rated for .20 gallons per minute per 100 RPM. It is available in two stage designs for immediate shipment.
Technical Data
| Range | 0 - 2.5 GPM |
|---|---|
| Pressure | 0 - 175 PSI |
Industry Uses
- Polymer Feed System Applications
- Sewage Treatment Applications
- Chemical Injection System Applications
ANBPL 6.2 Metering Pumps
The 6.2 size ANBPL Progressive Cavity Metering Pump is rated for .40 gallons per minute per 100 RPM. It is available in two stage designs for immediate shipment.
Technical Data
| Range | 0 - 5.0 GPM |
|---|---|
| Pressure | 0 - 175 PSI |
Industry Uses
- Polymer Feed System Applications
- Industrial Wastewater Treatment Applications
- Chemical Injection System Applications
ANBPL 12.2 Metering Pumps
The 12.2 size ANBPL Progressive Cavity Metering Pump is rated for .80 gallons per minute per 100 RPM. It is available in two stage designs for immediate shipment.
Technical Data
| Range | 0 - 9.5 GPM |
|---|---|
| Pressure | 0 - 175 PSI |
Industry Uses
- Polymer Feed System Applications
- Industrial Wastewater Treatment Applications
- Chemical Injection System Applications
Pumps and pump parts offered for sale by Liberty Process Equipment, Inc. are made in the United States, Germany, India, Spain, Argentina and Brazil.
